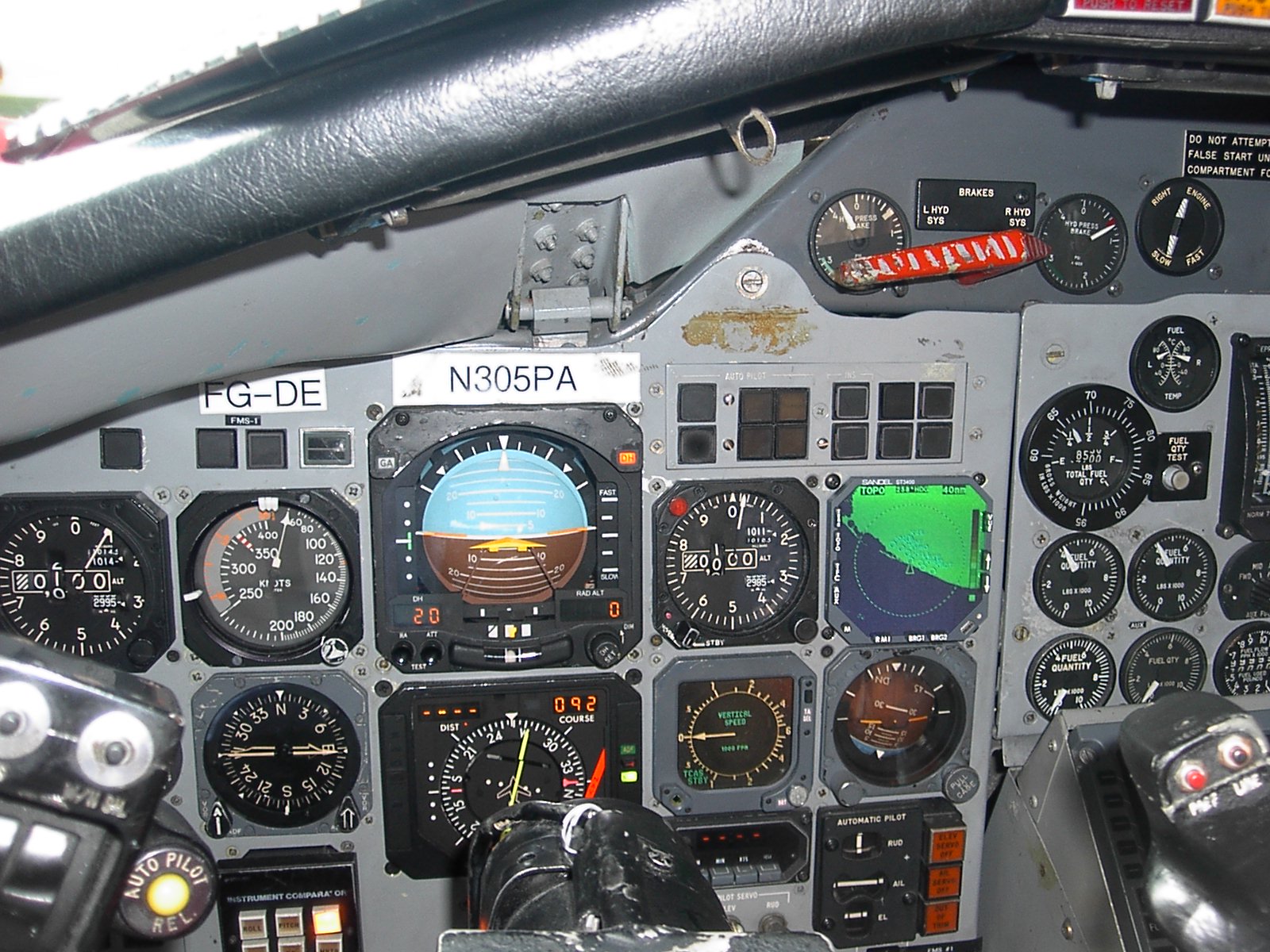

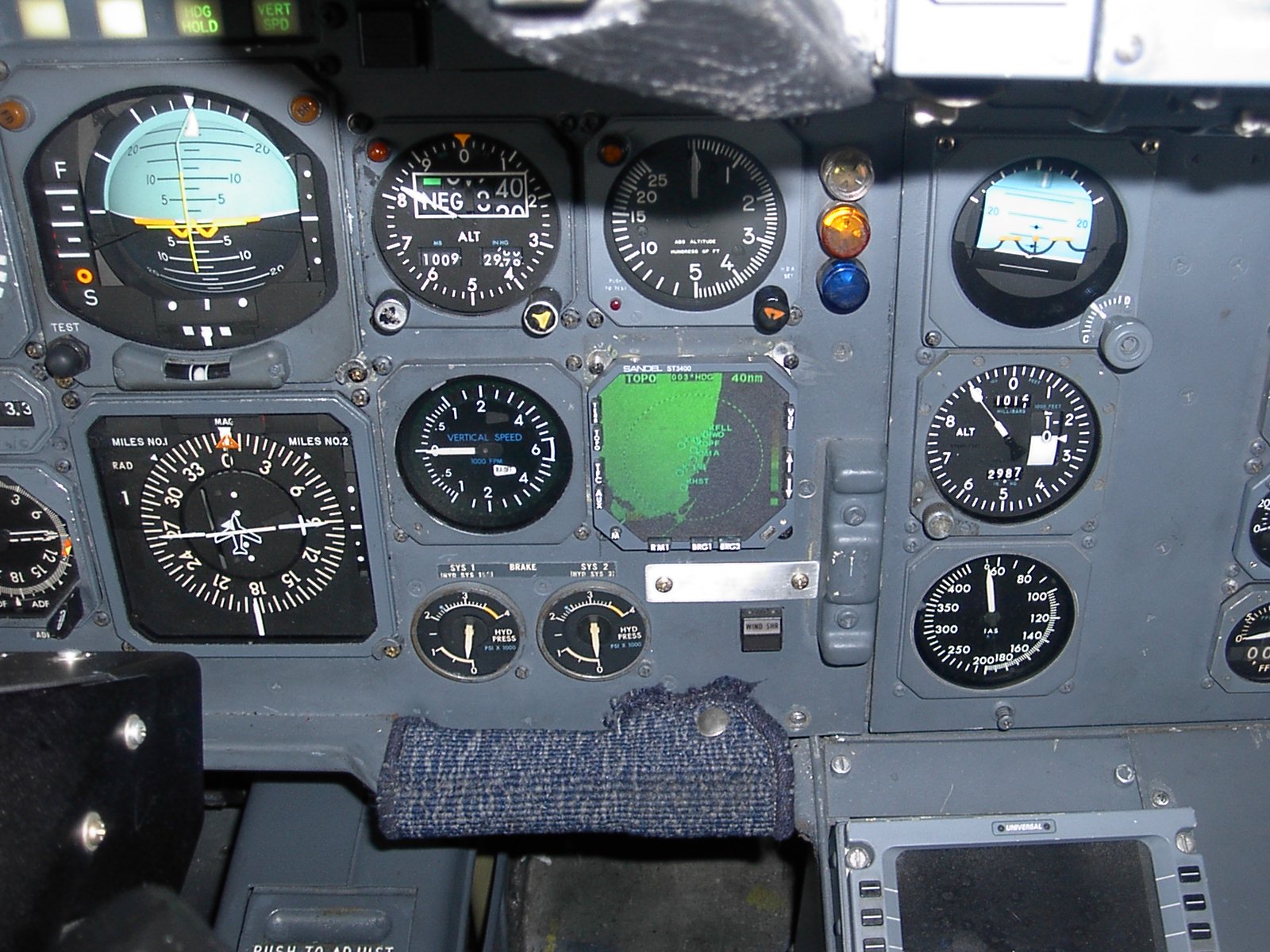

 | Integrated color display. Provides full-time situational awareness that greatly enhances
flight safety-not shared with the radar display |
| Real-time graphics.
Unlike radar display solutions, the
ST3400 display moves with the aircraft
heading instantly. It displays a true terrain picture with no latency or
delays |
|
TCAS II Interface.
(pending) Will also display Traffic information without the need for an
additional display |

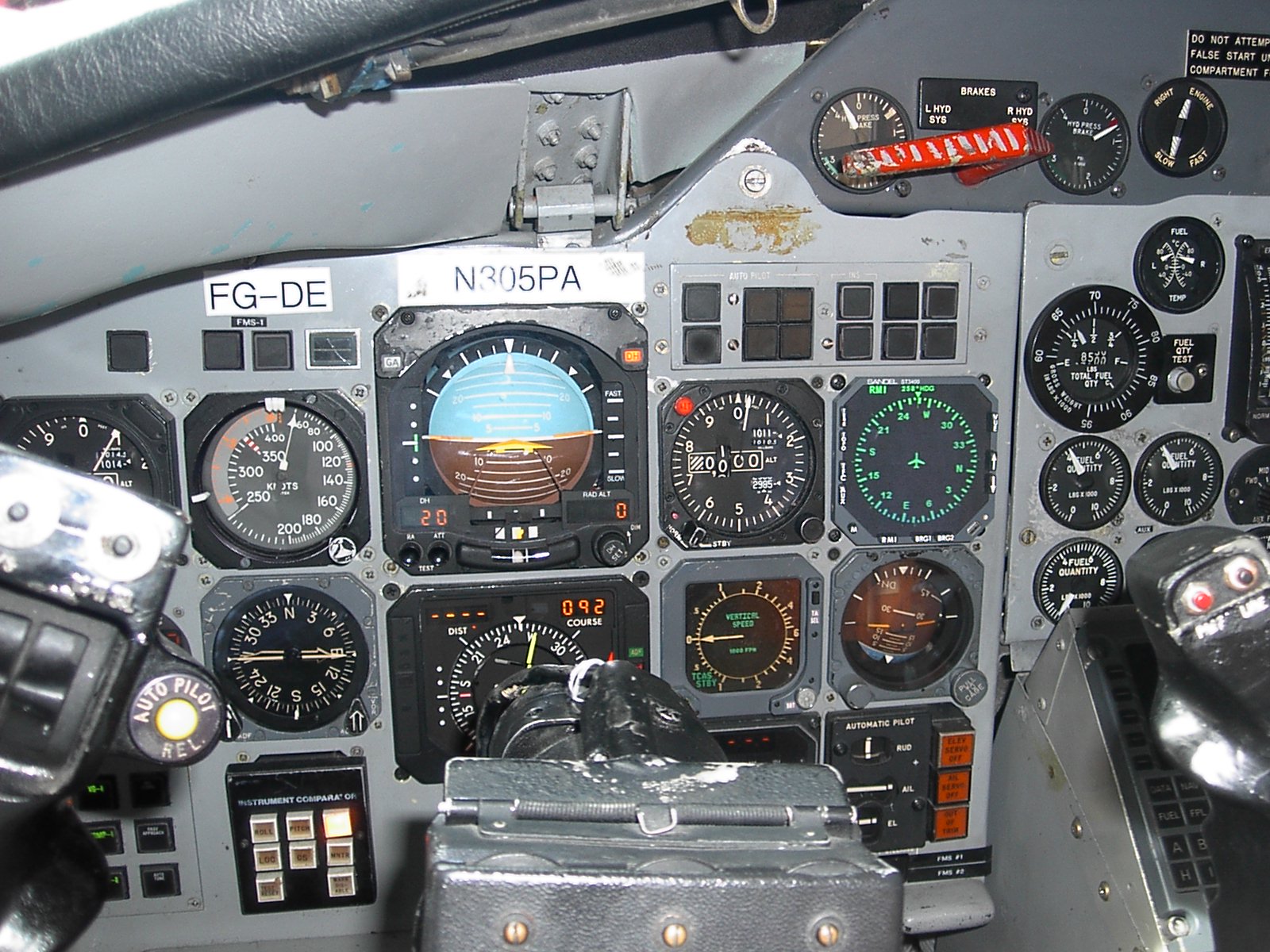

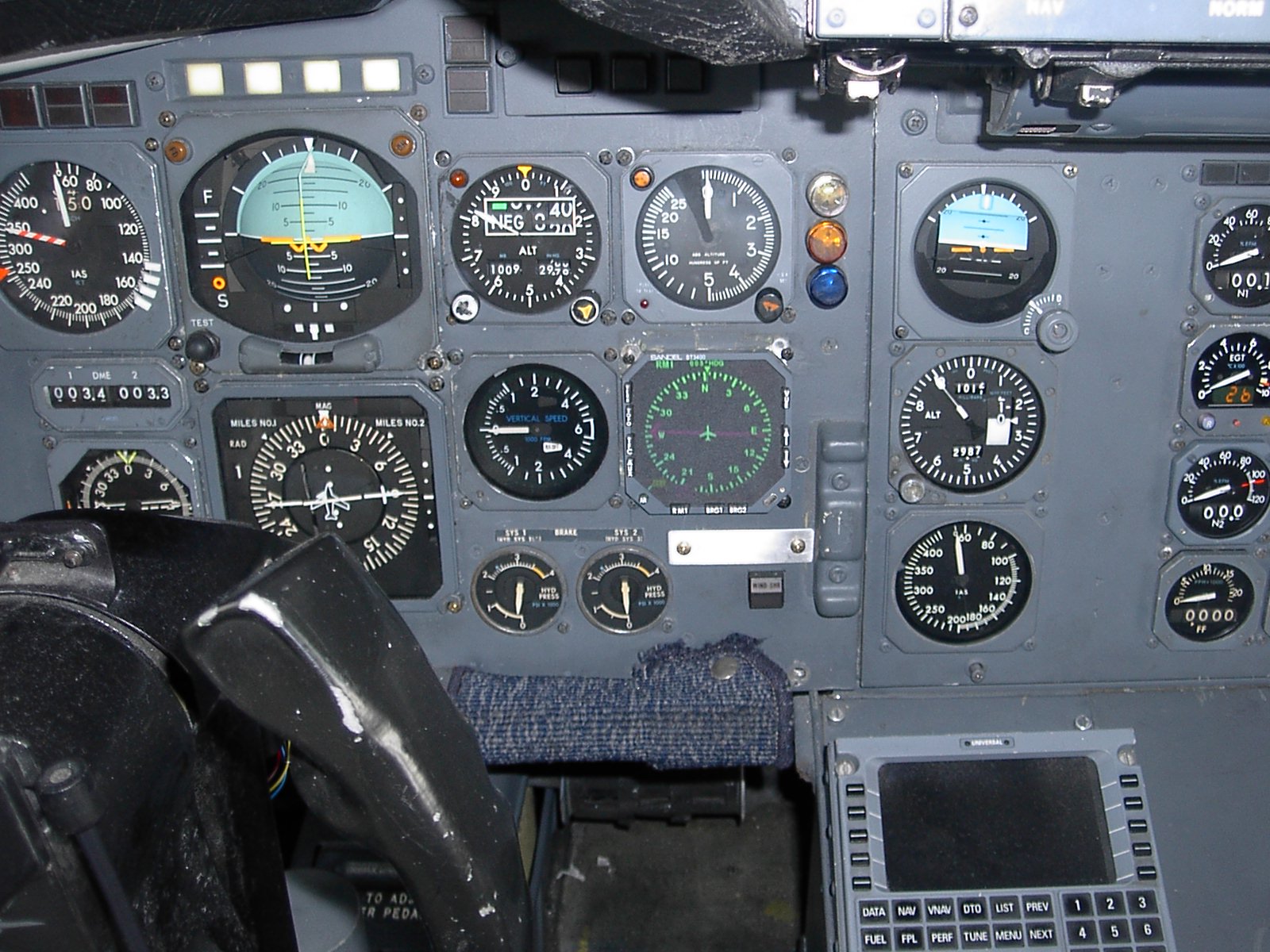

| Standard 3ATI chassis.
The
ST3400 has minimal or no impact on existing panel layouts
|

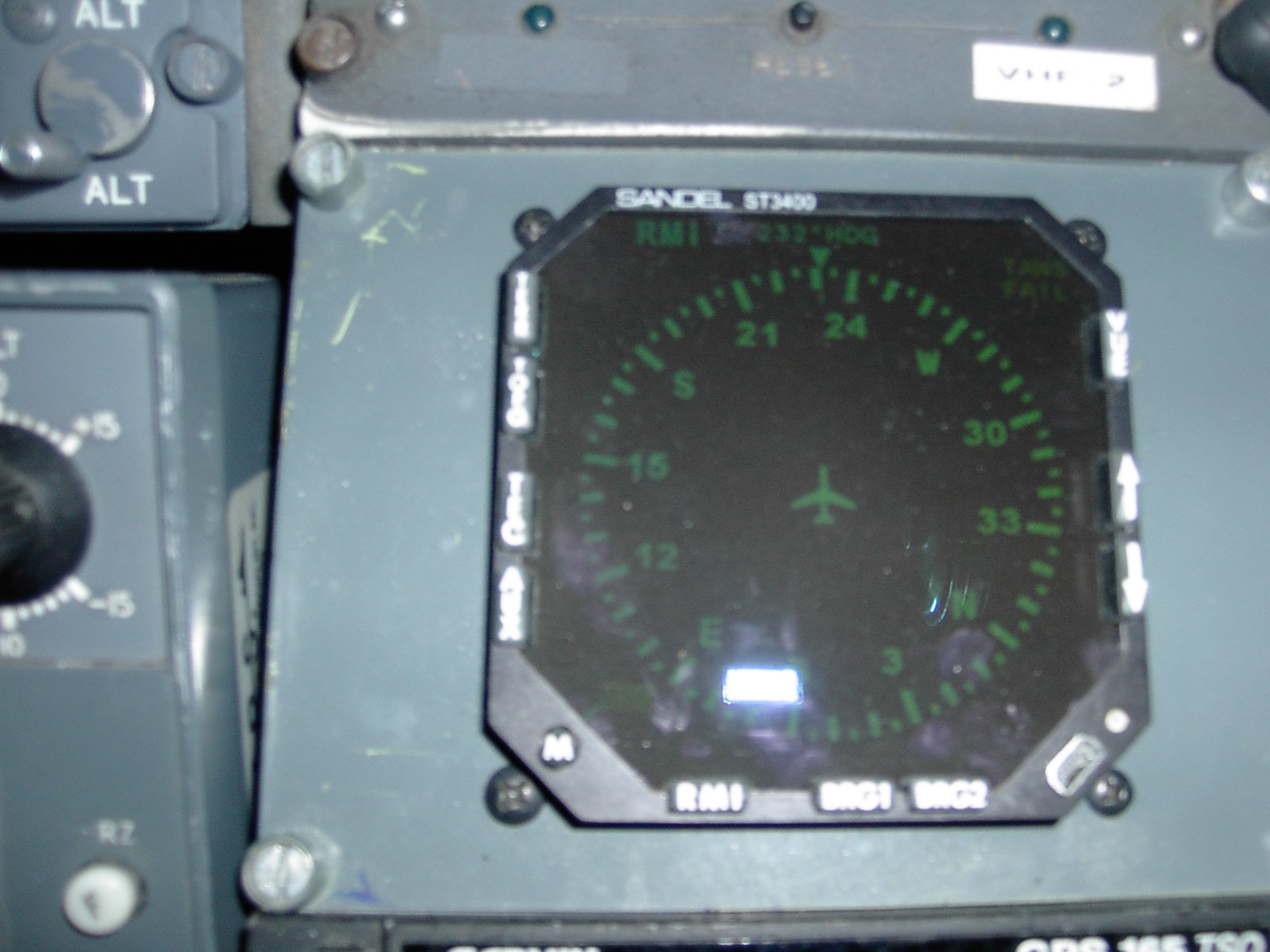

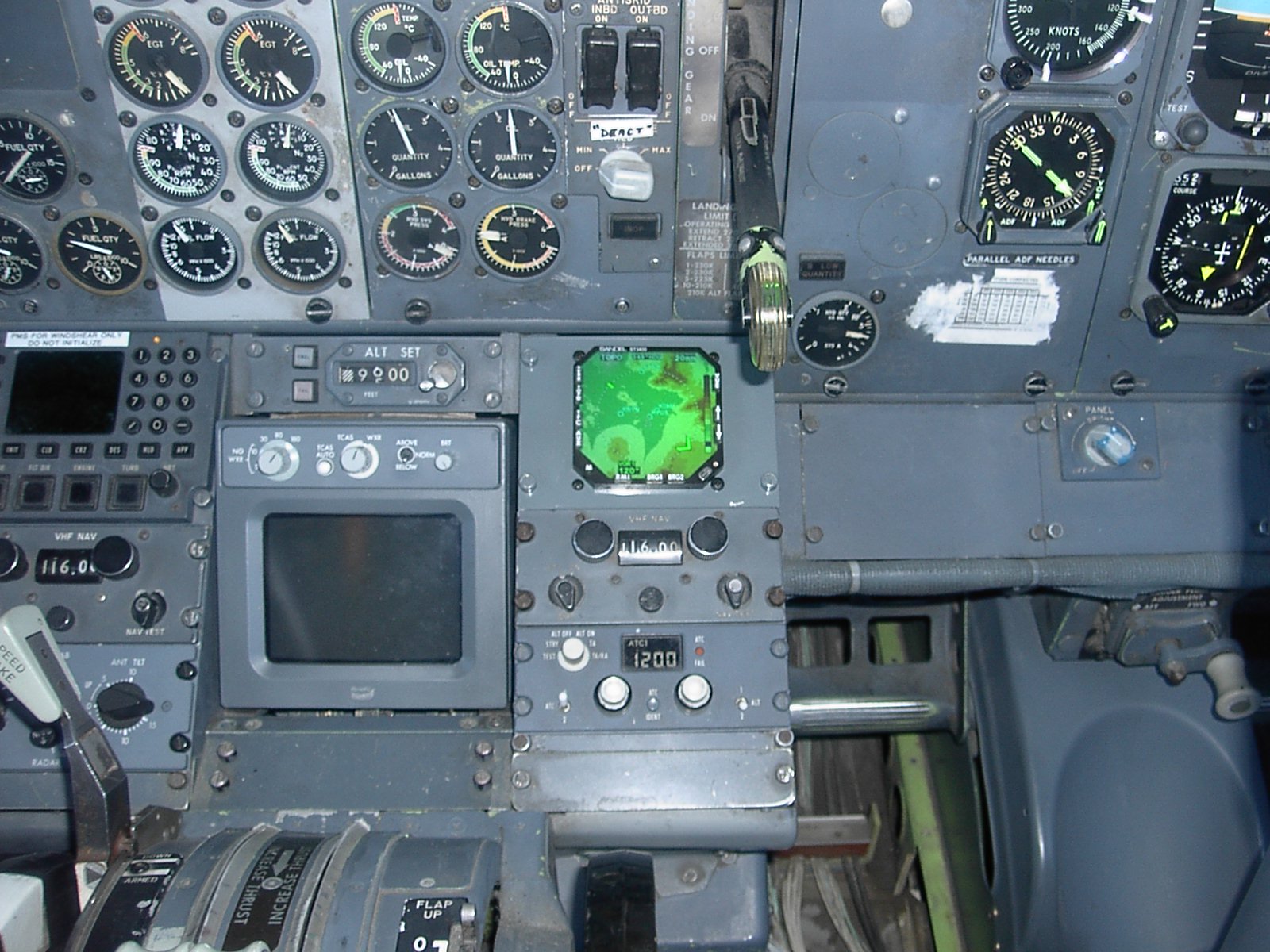

| Mechanical RMI replacement. Designed as a direct replacement for existing old mechanical RMI’s
|
| Smart-interface technology (Patent Pending).
Compatible with all vintages of aircraft systems both analog and digital
|

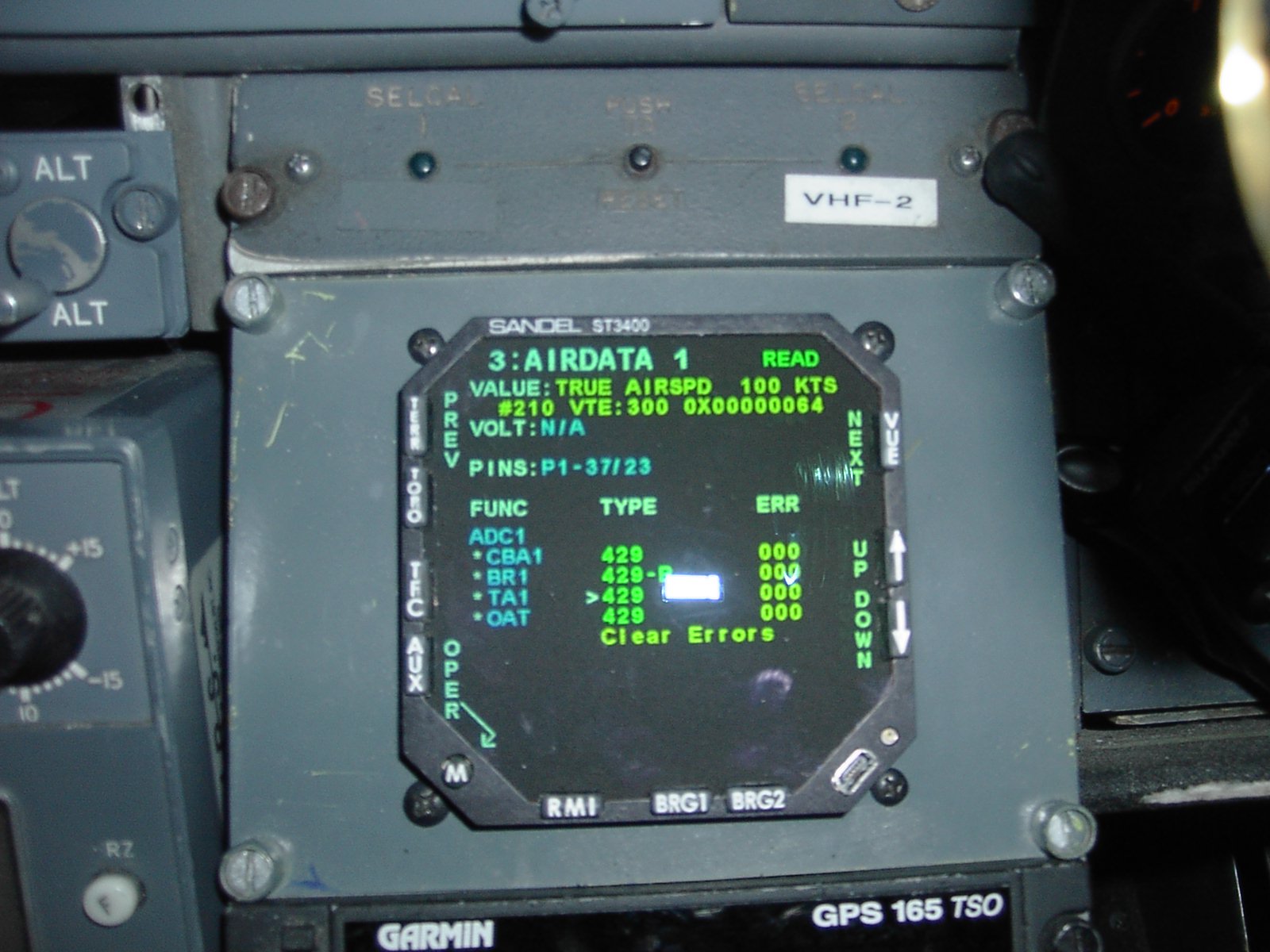

| Software configurable.
Allows the use of an aircraft resident configuration module
|
| Minimal crew training.
Intuitive and easy to use, requiring minimal crew orientation
|
| Patented rear-projection technology.
Use’s Sandel’s patented edge-to-edge display technology providing a large
viewing area that is sharp, brilliant and easily readable even in direct
sunlight. The Sandel ST3400 TAWS display area is equal in size to a 4” display
|
